Ring Pull Can Opener
A pull tab aid designed to improve leverage when opening larger cans.
Quick Details
Category: Eating
Tags: Decreased Pinch Strength, Limited Fine Motor Dexterity, Increased Leverage, Reduced Hand Strain
Recommended Filament: PETG
Print time: ~ 1 hour 45 minutes
Print Difficulty: Easy
Device Assembly: None
Supports: No
Original Creator: Luca Parmegiani

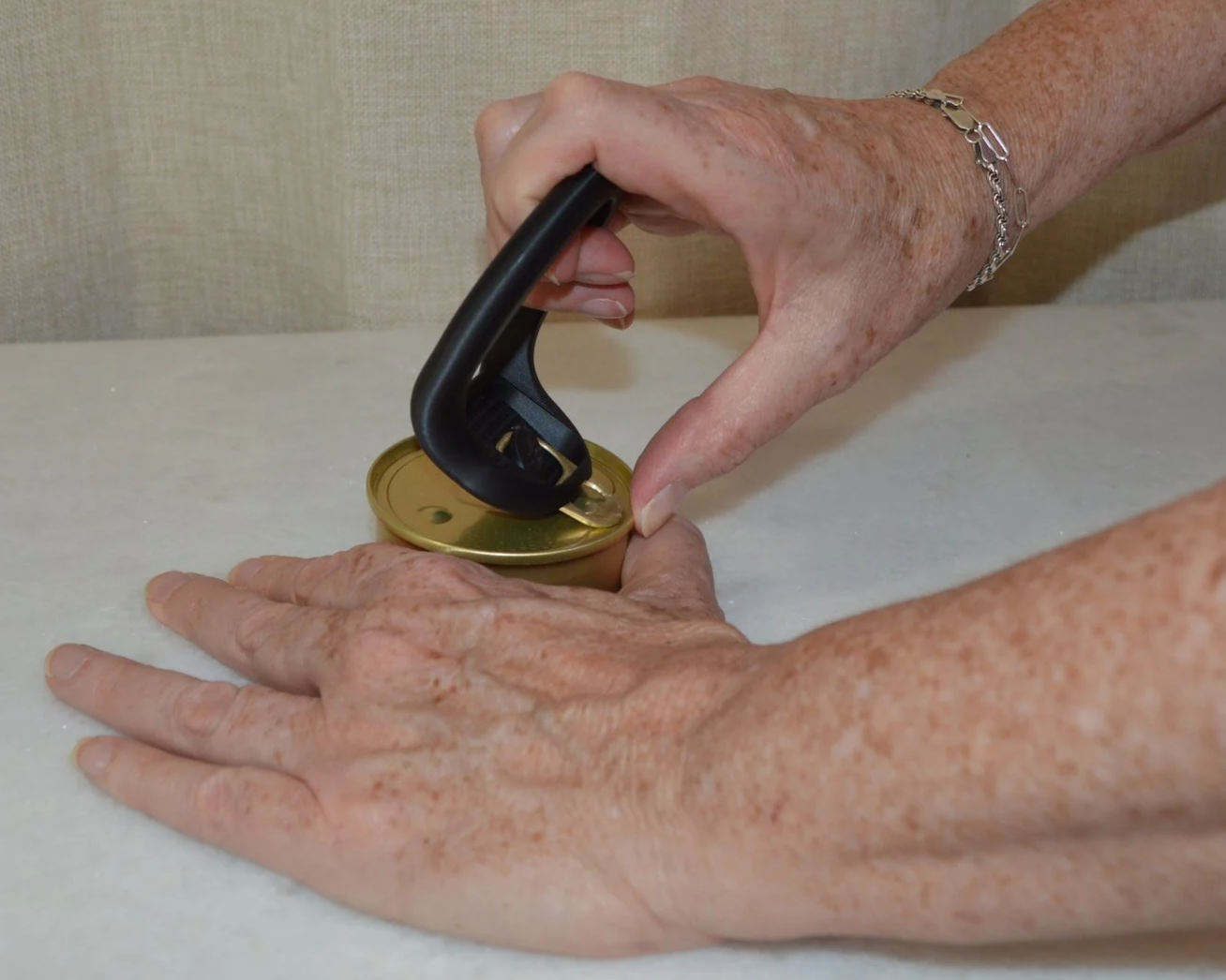

In Use

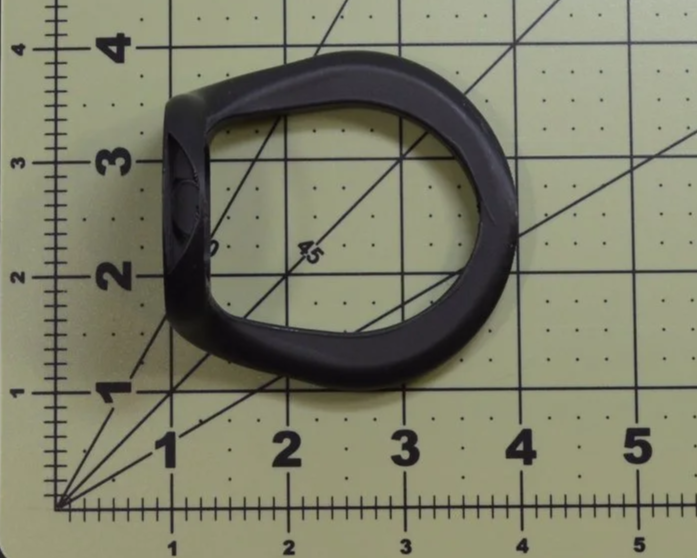

Scale Reference, 1 in.

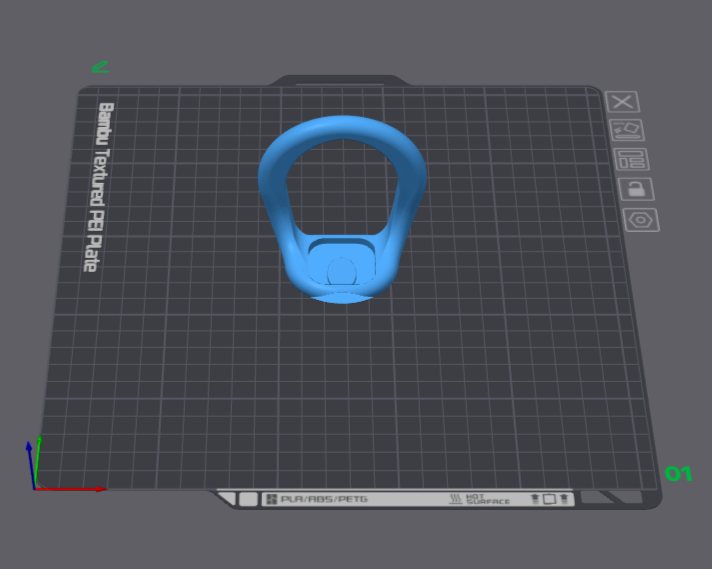

Print Orientation
-
Filament type: PETG
Layer height: 0.20mm
Infill: 15-20%
Supports: None
Wall count: 4
Estimated filament used: 20 Grams
Print difficulty: Easy
Print time: About 1 Hour 45 Minutes
-
Added materials: None
Tools needed: None
Post processing: None
Time to assemble: None
Assembly Process: None
-
Functional Use: This device is a larger pull-tab aid that slides under the ring on bigger food cans and lifts the lid, keeping fingers away from the sharp edge.
Relevant Occupations: Meal Preparation
Client Factors: May be relevant when grip and pinch strength are reduced.
Performance Skills: One hand holds the can while the other works the device under the ring and levers the lid up, instead of pinching and pulling the tab.
Safety Considerations: The opened lid edge is sharp, so keep fingers clear during and after the lift. Seat the tool fully under the ring before use.
Limitations: It is made for food cans, not beverage cans. The center can wear with use. It is not a cleared medical device, so its use must be a clinical decision made by the treating occupational therapist.
-
Issues: None
Recommendations: Check the type of cans the user plans to open. This can opener works well for food cans but not for beverage cans.
Ease of use: Easy
Test results or review: The part worked as intended. The center of the piece may wear down with extended use.
-
Original file link: https://www.myminifactory.com/object/3d-print-ring-pull-can-opener-5732
Creator credit: Luca Parmegiani
